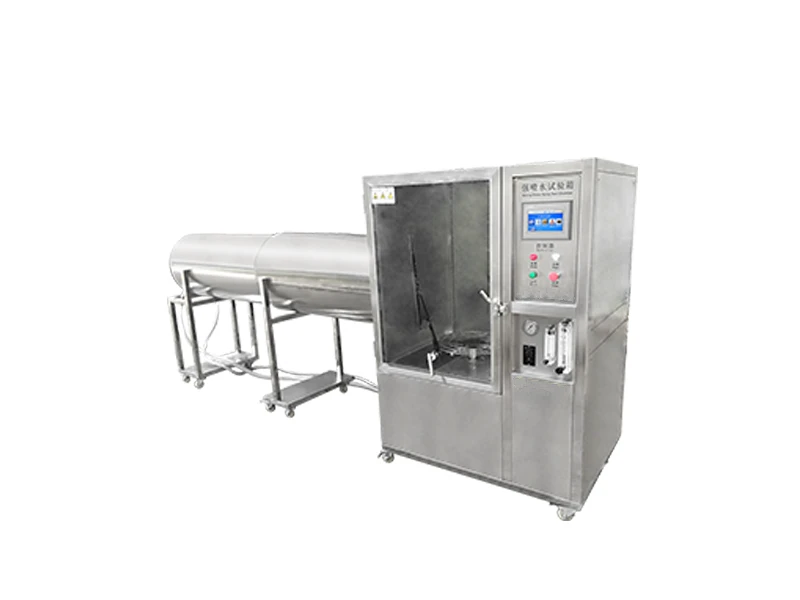

Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test

Brand Name : BOTO

Model Number : BT--E710-3

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Internal chamber size : 800Wx800Dx800Hmm

IP Code : IPX5

Delivery rate : 12.5l/min±5%

Minimum test duration : 3 min

Power : Electronic

External chamber size : 1200Wx900Dx3300Hmm

Internal diameter of spray nozzle : 6.3mm

Controller : PLC touch screen

Contact Now

Product Paramenters
Item
Specification
Internal chamber size
800Wx800Dx800Hmm
External chamber size
1200Wx900Dx3300Hmm
IP Code
IPX5
IPX6
Internal diameter of spray nozzle
6.3mm
12.5mm
Delivery rate
12.5l/min±5%
100l/min±5%
Core of the substantial stream
Circle of approximately 40mm diameter at 2.5m distance from nozzle
Circle of approximately 120mm diameter at 2.5m distance from nozzle
Chamber material
Internal: SUS304 stainless steel, external: stainless steel
Test duration per square meter of enclosure surface area likely to be sprayed
1 min
Minimum test duration
3 min
Controller
PLC touch screen

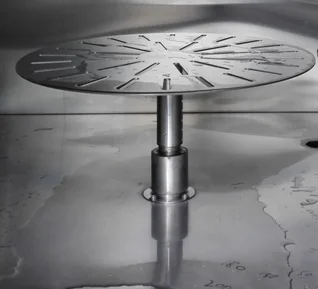

Turntable
Diameter 300mm, rotate speed 3±1R/min
Distance from nozzle to enclosure surface
Between 2.5m and 3m
Distance from nozzle to specimen surface
200mm
Chamber material
Stainless steel, with observation window
Safety protection device
Short circuit protection, grounding protection, water shortage protection, audible and visual alarm

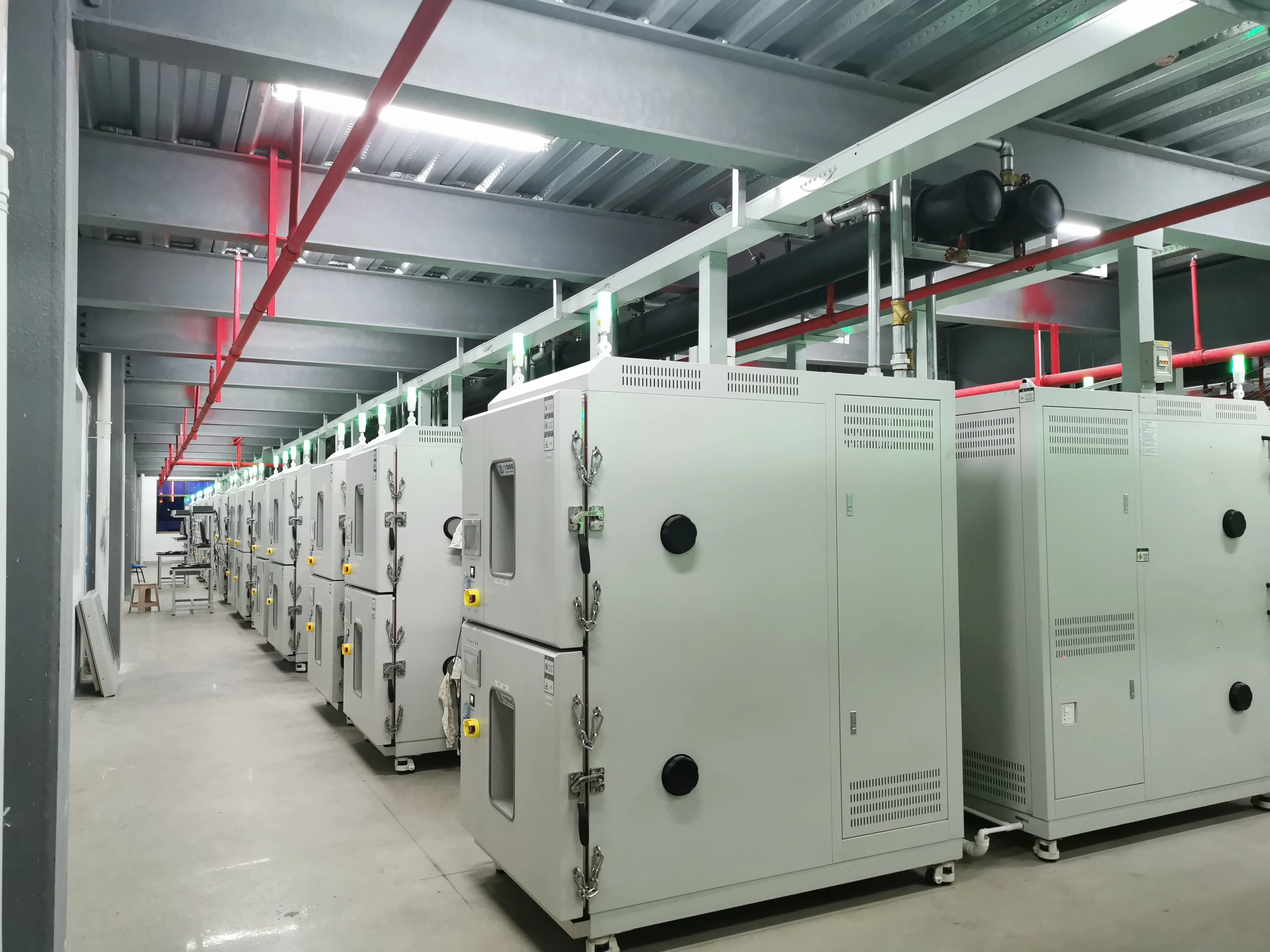

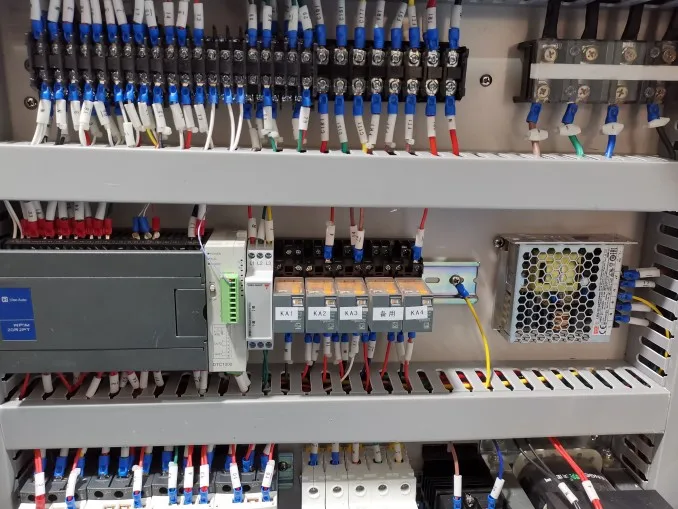

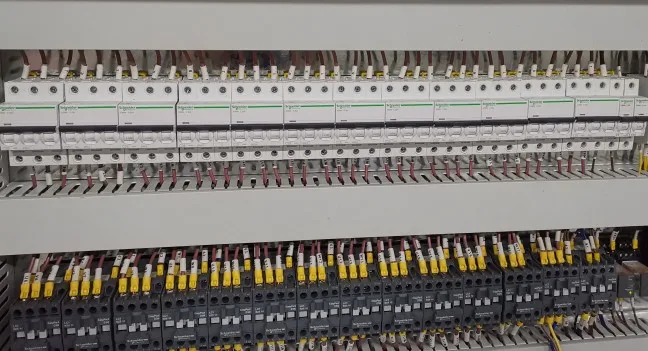

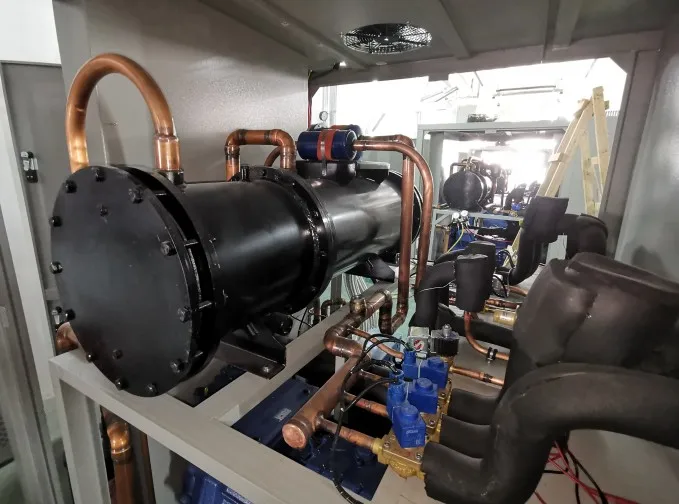

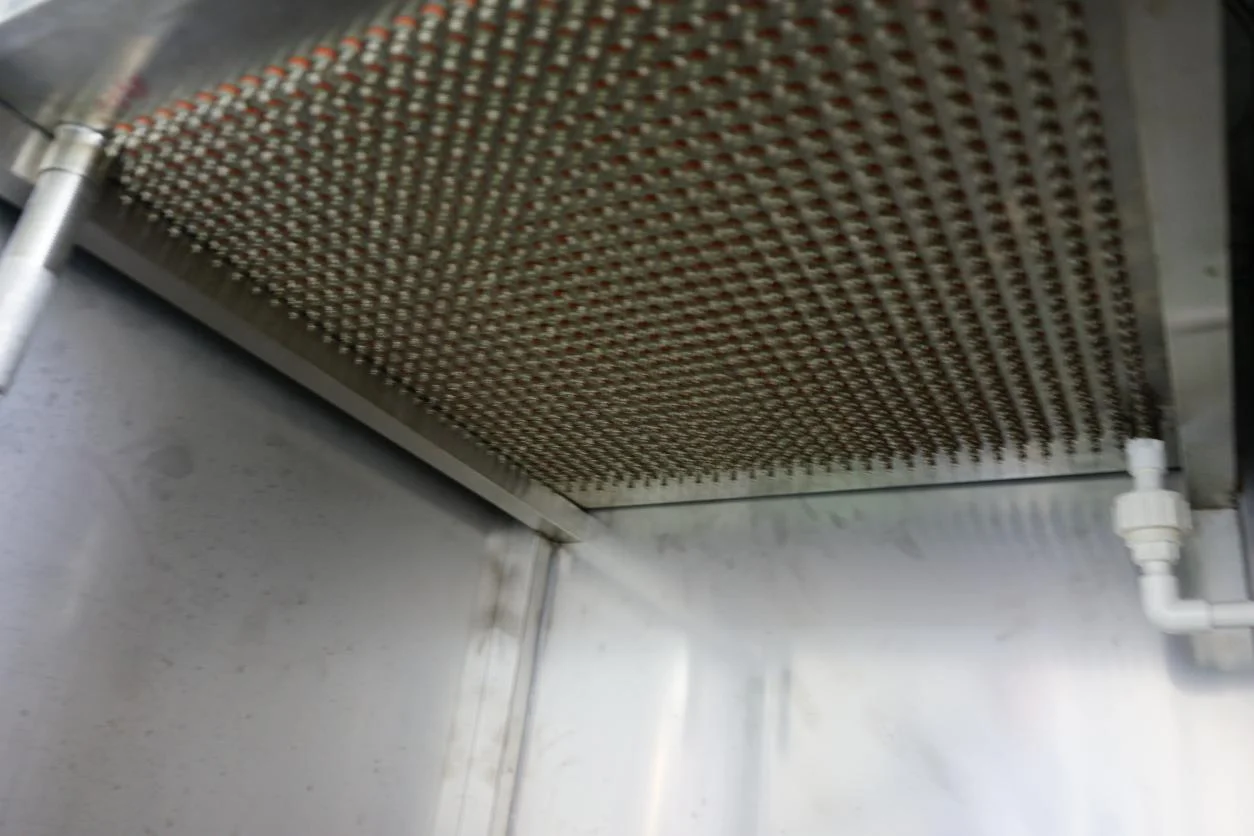

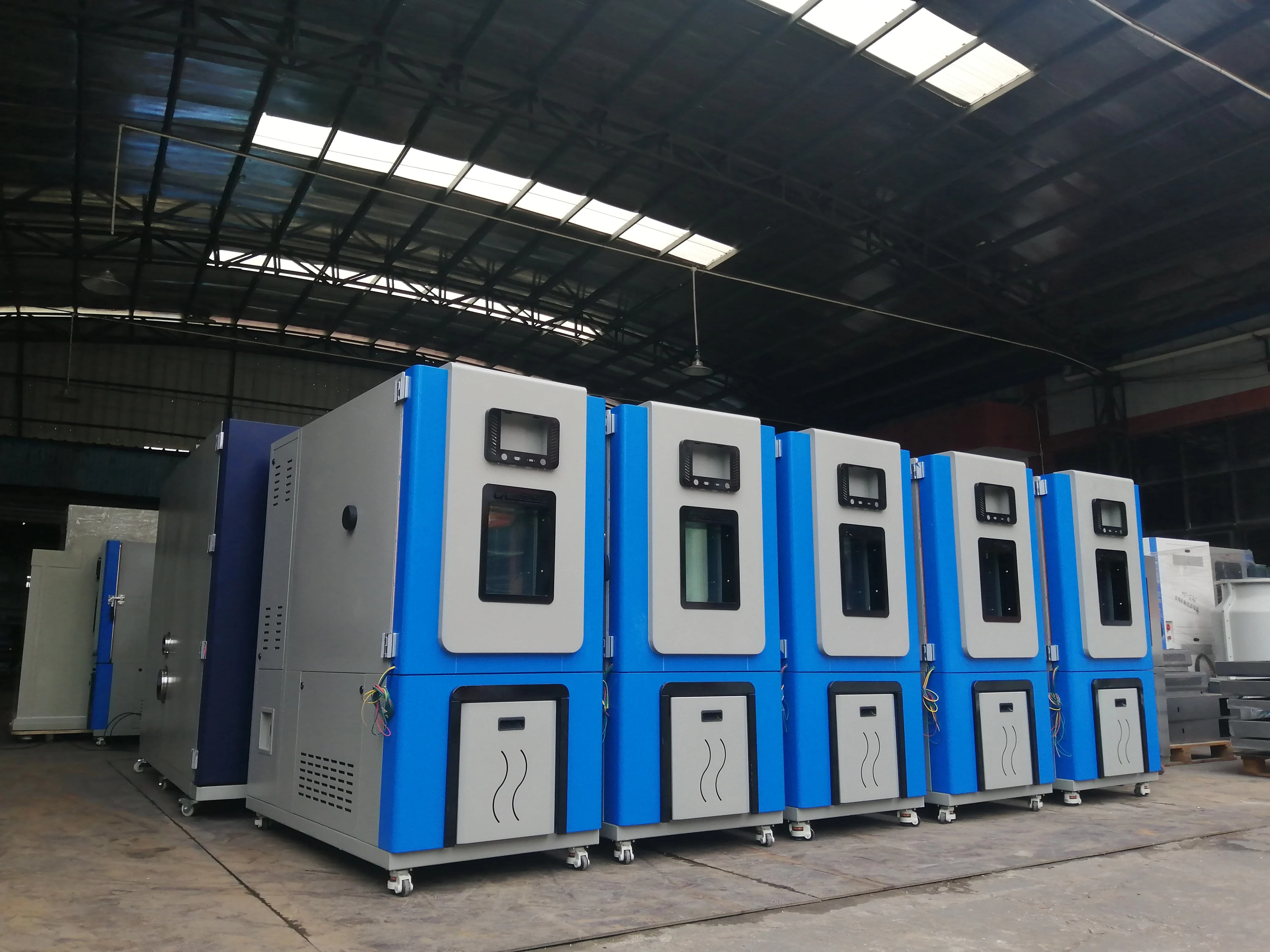

Details Images
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Application
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Vehicle
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Electronic
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Parts
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Plastic
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Foods
Stainless Steel Simulated Rain Environment Test Chamber Ipx56 Waterproof Test Chamber For Electronic Test
Chemistry
