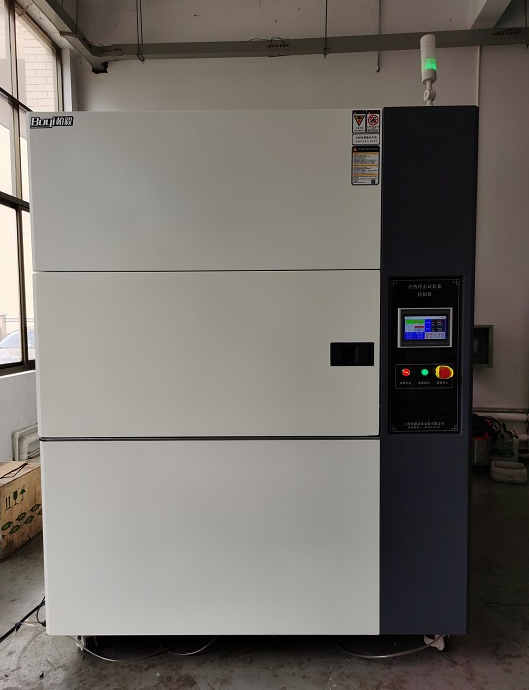

Electronic Element SUS304 Temperature Shock Chamber 19KW

Brand Name : BOTO

Model Number : B-TS-601

Certification : iso

Place of Origin : China

MOQ : 1set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 2000set/month

Delivery Time : 20-25work days

Packaging Details : PLY-Wooden case

Product name : Temperature schock chamber

Usage : Electronic element Tester

Color : White and blue

Material : Coating or SUS#304Stainless steel plate

Internal dim : 40x35x35

External dim : 143x210x170

Test temp range : -65℃~150℃

High temp range : 80℃~200℃

Power : 19KW

Power supply : AC:380V 50/60Hz

Contact Now

Electronic Element Tester Three Box-Type Hot And Cold Impact Temperature Shock Chamber Environmental Test Chambers

Product description

Use

It is mainly used in the research and development of national defense industry, aviation industry, automobile parts, electronic parts, plastic industry, food industry, pharmaceutical industry, and related products, as well as the test specification of quality management engineering. Thermal storage type cold and hot impact testing machine is a cold and hot alternate impact mode, widely used in electronic parts, semiconductor, metal, chemical, material and other testing equipment.

Electronic Element SUS304 Temperature Shock Chamber 19KW

Features

1. Adopt touch type color man-machine interface +PLC+J inlet temperature controller;
2. Can set the cycle and defrost times;
3. Exceptions and failure points display, and a simple troubleshooting teaching reminder;
4. Complete system safety protection and power failure memory;
5. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection;
6. Air cooling or water cooling can be selected according to customer requirements.

Specification

Model B-TS-401 B-TS-402 B-TS-403 B-TS-501 B-TS-502 B-TS-503 B-TS-601 B-TS-602 B-TS-603
Internal dim 40X35X35 50X40X40 60X50X50 40X35X35 50X40X40 60X50X50 40X35X35 50X40X40 60X50X50
External dim 143X210X170 154X212X170 166X220X180 143X210X170 154X212X170 166X220X180 143X210X170 154X212X170 166X220X180
Sample Weight 5KG 10KG 20KG 5KG 10KG 20KG 5KG 10KG 20KG
Low Temp Range ’-10℃~-60℃ ’-10℃~-70℃ ’-10℃~-80℃
Test Temp Range ’-40℃~-150℃ ’-55℃~-150℃ ’-65℃~-150℃
High Temp Range 80℃~200℃(Trial of various specifications)
Recovery time 3~5min
Temp Fluctudtiont ±2℃
Interior SUS#304Stainless steel plate
Exterior Coating or SUS#304Stainless steel plate
Power Source AC:380V 50/60Hz
Power(KW) 16KW 19KW 19KW 19KW 20.5KW 22KW 19KW 26KW 33KW

Detail picture

Electronic Element SUS304 Temperature Shock Chamber 19KW

Electronic Element SUS304 Temperature Shock Chamber 19KW

Electronic Element SUS304 Temperature Shock Chamber 19KW

Production Process

Electronic Element SUS304 Temperature Shock Chamber 19KW

Electronic Element SUS304 Temperature Shock Chamber 19KW

Electronic Element SUS304 Temperature Shock Chamber 19KW

Electronic Element SUS304 Temperature Shock Chamber 19KW

PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.

Electronic Element SUS304 Temperature Shock Chamber 19KW

Factory introduction

BOTO GROUP LTD.Is a professional manufacturer of environmental test equipment and test service. Our company was established in 1998,the plant covers 55,000 square meters and a construction area of 6,800 square meters, existing 160 workers and we can provide operation video for machines.

Electronic Element SUS304 Temperature Shock Chamber 19KW

Main equipment

  • Constant Temperature and Humidity Test Chamber
  • Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
  • UV Accelerated Aging Test Chamber
  • Mini Environmental chamber / Desktop Environmental Test Chamber
  • Walk in Constant Temperature and Humidity Lab
  • High Temperature Chamber and Other Lab Test Equipment etc.

Electronic Element SUS304 Temperature Shock Chamber 19KW

Main market

Electronic Element SUS304 Temperature Shock Chamber 19KW

The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.

Certification

Electronic Element SUS304 Temperature Shock Chamber 19KW

The certificate is valid until June 17, 2024

Electronic Element SUS304 Temperature Shock Chamber 19KW

Cooperative partners

Electronic Element SUS304 Temperature Shock Chamber 19KW

BOTO ADVANTAGE

Electronic Element SUS304 Temperature Shock Chamber 19KW

Customers photos

Electronic Element SUS304 Temperature Shock Chamber 19KW

Electronic Element SUS304 Temperature Shock Chamber 19KW​​

Our Team

Electronic Element SUS304 Temperature Shock Chamber 19KW

Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
